How do I adjust the beam spread on the Aurora Accent Light?

Note: Ensure safety precautions are followed, and the fixture is powered off during adjustment.

1. Identify Beam Angles:

   • Locate the beam angle changing dial on the fixture.
   • Note the four pre-determined beam angles marked on the dial.

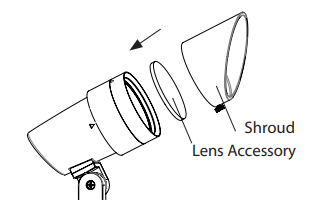

2. Shroud Removal:

   • Before adjusting the beam angle, ensure the shroud is removed.


3. Loosening Set Screw:

   • Use the provided Hex Key.

   • Slightly loosen the set screw by turning it one or two times.
   • Do not completely remove the set screw from the fixture.
   • CAUTION: The set screw should only be removed for servicing. Contact the factory for service instructions.

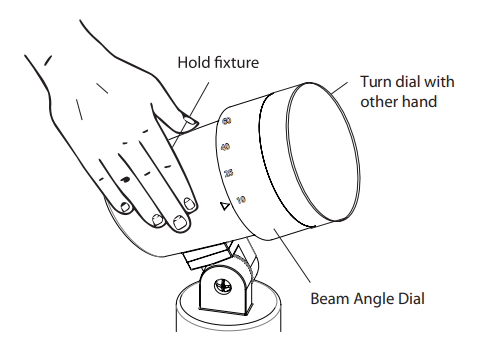

4. Rotating the Dial:

   • Hold the fixture body securely.
   • Rotate the dial until the arrow aligns with the desired beam angle.

   • The desired beam angle can be one of the pre-determined markings or any number in between.

5. CAUTION: Arrow Alignment:

   • Keep the arrow marking on the fixture body within the beam angle range.

6. Tightening Set Screw:

   • While holding the fixture body, tighten the set screw until it stops.

   • CAUTION: Do not over-tighten the set screw.

7. Shroud Installation:

   • After adjusting the beam angle, securely install the shroud.

By following these steps, you can safely and accurately adjust the beam angle of the fixture. If servicing is required, contact the factory for guidance.
