How do I set DMX Channels to my Aurora Landscape Products?

Method 1: RDM Tool

Utilizing an RDM tool such as the Swisson-XMT, the devices may be assigned a starting address.

DMX Channels:

• CH1: Dimming - The module or the group can be dimmed from 100–1%, in increments of 1%. The dimming value is shown at the far left.
• CH2: CCT - The CCT of an individual module or selected group of modules can be changed in increments of 25K. The CCT range of 1650 – 4000K, 2700 – 6000K, or 1650 – 8000K is automatically detected.
• CH3: Saturation - Saturation adds gradients of color to a white point. Saturation can be added in increments of 1%, from 1 - 100% (fully saturated).
• CH4: Hue - Hue enables different colors to be added to the light in increments of 1°, from 1° to 60°.

Related Links:

Validate Topology and Network Continuity (zendesk.com)

Method 2: Illumenight App

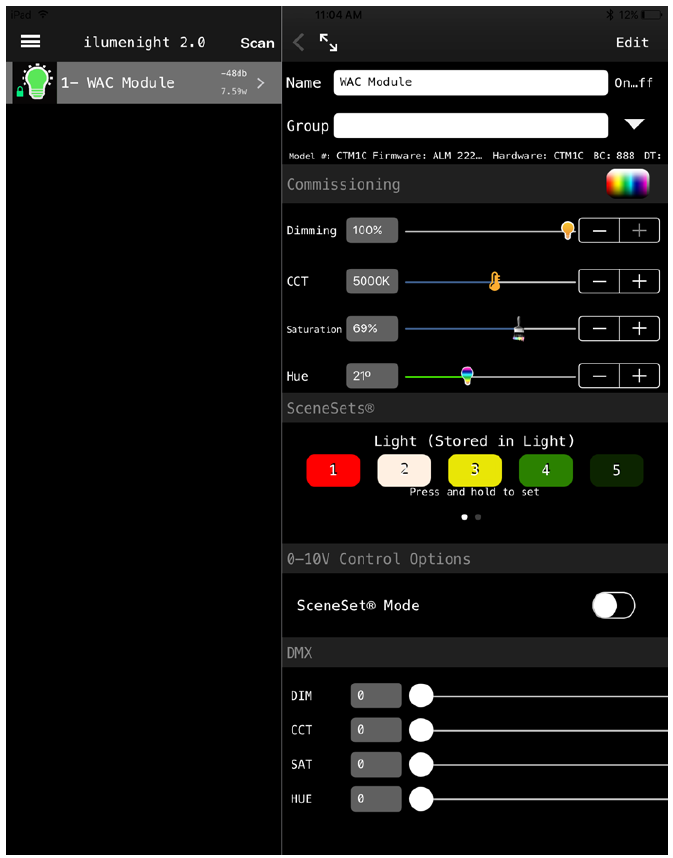

1. Open the Illumenight 2.0 App and Scan for devices.
   NOTE: Ensure Bluetooth is Enabled on your Device.
2. On the Main Screen, select the module or group to be configured.
3. Scroll to the bottom of the Commissioning Screen until the DMX Channels selection menu is visible.
4. Set the four channel numbers appropriately as desired numbers between 0 and 512, either by dragging the sliders, or by clicking in the value fields and typing in the desired values, or by pressing the +/- buttons located on the right of the sliders.
