Addressing Fixtures

Introduction:

As the dazzling world of lighting design unfolds, the efficient and strategic allocation of DMX addresses becomes a critical aspect of creating seamless and captivating visual experiences. In this article, we explore the intricacies of fixture addressing within a DMX universe, emphasizing the importance of careful consideration to ensure optimal performance and prevent erratic behavior.

Address Usage in DMX Universes:

A DMX universe offers a canvas of 512 addresses for fixtures to inhabit, each representing a unique channel of control. As the backbone of the system, these addresses must be judiciously allocated to accommodate the various fixtures that bring a lighting design to life. Once all 512 addresses are assigned, it signals the need to expand the system by adding an additional universe to accommodate more fixtures.

Understanding Fixture Addresses and Overlapping:

There are several factors to consider when populating a universe with fixtures, and limits of these factors should be considered together. When one of the limits is reached, a necessary addition must be made to the system before continuing with more fixtures.

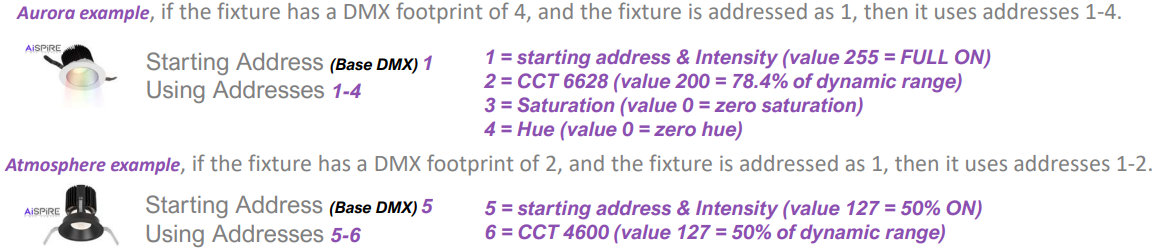

Address Usage - There are 512 addresses available on each DMX universe. Once the addresses have all been allocated, an additional universe should be added to accommodate more fixtures. When addressing the fixture, the first address is assigned on the fixture, and any additional “channel” addresses in the DMX profile are understood as being part of the fixture as well.

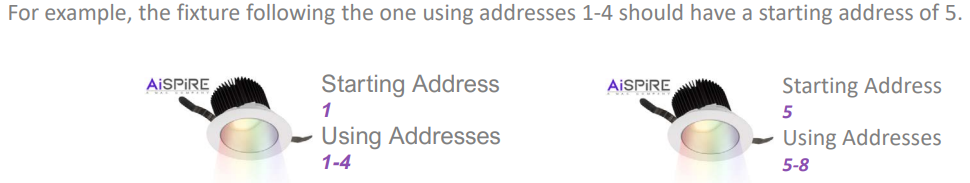

Fixture addresses must not overlap. After an address range has been allocated to a given fixture, the next address range must start after the previous range. Overlapping addresses will result in erratic behavior as the same channel is affecting two different fixtures.

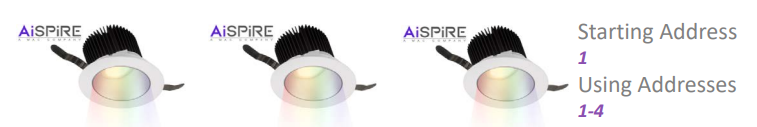

It is possible to assign the same address to multiple fixtures, only if their DMX profile is exactly the same. Doing this will allow multiple fixtures to be controlled simultaneously as one. Once all of the 512 addresses of a universe have been allocated, if more addresses are needed, an additional
universe will need to be added to the system.

Simultaneous Control and Additional Universes:

While each fixture should have a unique address range to prevent overlapping, it is possible to assign the same address to multiple fixtures under specific conditions. This is only feasible if the fixtures share identical DMX profiles. Such an arrangement allows for the simultaneous control of multiple fixtures as a cohesive unit.

Once the 512 addresses within a DMX universe are fully allocated, and additional addresses are required, the solution lies in expanding the system. Adding another universe ensures a continued canvas for creative fixture placement and control, maintaining the integrity and efficiency of the lighting design.
