How do I replace the LED module on my Trimeless Step Light?

Introduction:

Step lights are a functional and aesthetic addition to any environment, providing both safety and ambiance. If you need to replace the LED module in your step light, this step-by-step guide using a flat head screwdriver will walk you through the process efficiently. However, it's essential to prioritize safety. If you are not comfortable or confident in performing electrical work, we strongly recommend seeking the assistance of a certified electrician. Let's get started!

Related Link:

STEP LIGHTS HORZONTAL RPS TRIMLESS WITH SPACKLE FRAME

STEP LIGHTS VERTICAL RPS TRIMLESS WITH SPACKLE FRAME

Equipment Required:

• Flat head screwdriver

Procedure:

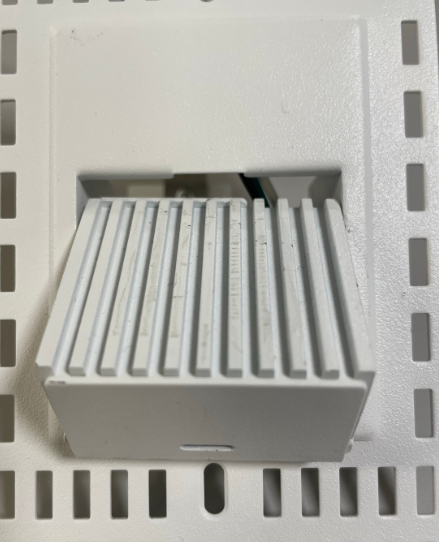

1. Locate the Notch: Identify the notch on the front side of the step light where the LED module is housed. This notch serves as the access point for the replacement process.


2. Insert the Screwdriver: Take the flat head screwdriver and carefully insert it into the identified notch. Apply gentle pressure to release the existing LED module from the tension spring. Ensure not to use excessive force to prevent damage.


3. Slide Out the Module: Once the LED module is released, slide it smoothly through the aperture in the step light. Follow any designated tracks or guides to ensure a straightforward removal.

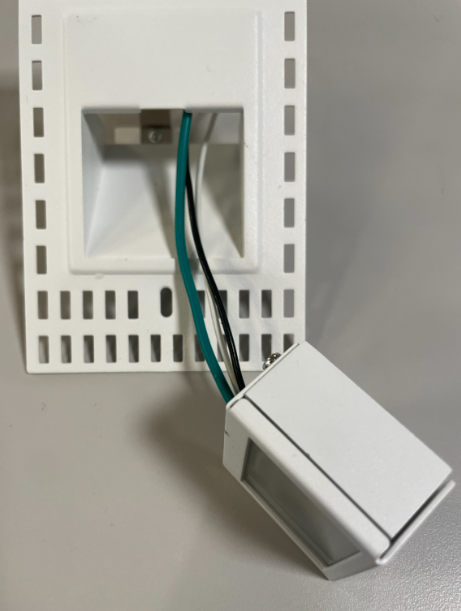

4. Access Electrical Connections: With the LED module removed, you now have access to the electrical connections. Identify the wiring and connectors attached to the module. If necessary, use the screwdriver to disconnect the electrical components, exercising caution during this step.


5. Prepare the New Module: Unpack the new LED module and inspect it for any specific instructions or markings. Align any notches or tabs on the module with corresponding features inside the step light to ensure a proper fit.

6. Slide In the New Module: Carefully slide the new LED module back into the aperture. Ensure that it fits securely into place.


7. Secure the Module: Once the new LED module is positioned correctly it will clip bac into place.

8. Test the Step Light: Verify that it illuminates properly, ensuring all connections are secure and functioning as expected.

Conclusion:

Congratulations! You have successfully replaced the LED module in your step light. If you encounter any issues or have concerns during the process, consult the manufacturer's guidelines or seek professional assistance.
