What Power Supply can I use with the Alpine Micro?

In the intricate world of lighting design, the importance of power supply cannot be overstated. On the previous slide, you might have overlooked a crucial detail about Alpine Micro—the strategic placement of its power supply. Due to the compact half-inch aperture size, a standard serviceable driver cannot navigate through it. Alpine Micro ingeniously tackles this challenge with a line of remote power supplies crafted specifically for its unique design.

Reference Links:

Remote Power Supply 1 CH

Remote Power Supply 6 CHs

Tailored Solutions: CH1 and CH6 Models

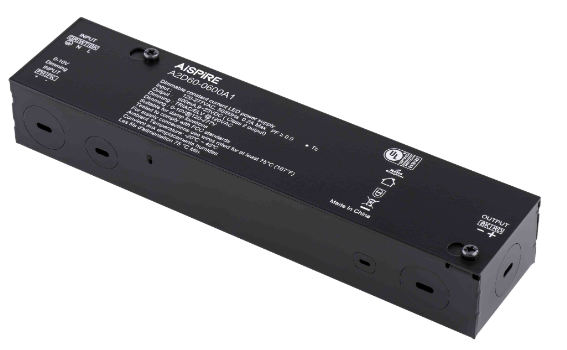

Alpine Micro offers two distinctive models of remote power supplies, catering to different installation scenarios. The CH1 model, designed for individual fixtures, boasts universal voltage capabilities. It accommodates one channel or fixture, supporting universal dimming options such as ELV, TRIAC, and 0-10 to a low dimming percentage.

For installations where Alpine Micro fixtures are employed in multiples, such as the configuration of six fixtures showcased on the right, the CH6 model comes into play. This versatile power supply can handle anywhere from one to six fixtures on a single unit. Similar to the CH1, it supports universal voltage and a dimming range that encompasses ELV, TRIAC, and 0-10 dimming.

Remote Placement for Convenience

To further enhance flexibility, Alpine Micro's remote power supplies are strategically located in utility rooms, closets, garages, or basements—any space that is serviceable and easy to wire. This not only ensures convenient access for maintenance but also allows for efficient and organized wiring setups.

Efficiency and Flexibility in Wiring

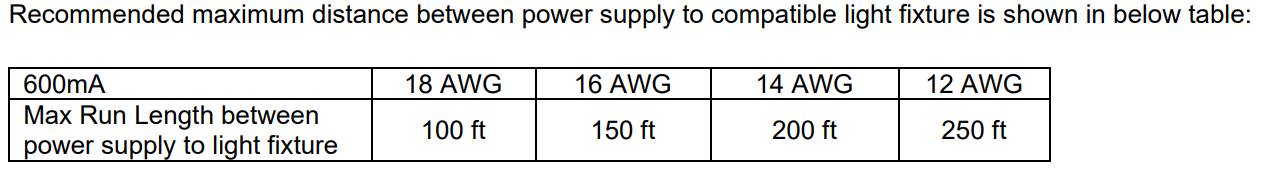

Alpine Micro's efficiency extends to its wiring requirements. The fixtures can be wired using thinner and less expensive 18-gauge wire, maintaining a distance of up to 100 feet. For scenarios demanding a longer reach, contractors have the option to use 12-gauge wire, extending the distance to an impressive 250 feet. This flexibility is a testament to Alpine Micro's commitment to providing solutions that adapt to the unique demands of each installation.

Unveiling the CH6 Remote Power Supply

Let's delve into the details of the CH6 model, a powerhouse designed to accommodate between one and six fixtures seamlessly. Each fixture is individually wired to a port located on the bottom right side of the unit, featuring color-coded red and black terminals for easy installation.

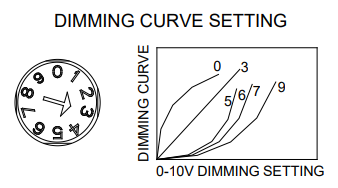

The compact design of the CH6 is further complemented by an integrated wiring compartment for line voltage on the bottom left side. Adding to its versatility, the CH6 supports 0-10V dimming, with a distinctive purple and pink middle port for input. A standout feature of the CH6 is the ability to choose between linear or logarithmic dimming curves. The top right dial allows users to select from multiple preprogrammed dimming curves, providing unmatched flexibility to cater to diverse customer or application requirements.

In conclusion, Alpine Micro's remote power supplies not only solve the challenge of fitting through small apertures but also offer tailored solutions for both individual and multiple fixture installations. The efficiency in wiring, coupled with the unique features of the CH6 model, underscores Alpine Micro's commitment to providing cutting-edge solutions that empower designers and contractors alike.
